[ CloudFront Signed URL / Signed Cookies ]

- You want to distribute paid shared content to premium users over the world

- We can use CloudFront Signed URL/Cookie. We attach a policy with :

   1) includes URL expiration

   2) includes IP ranges to acecss the data from

   3) trusted signers (which AWS accounts can create signed URLs)

- How long should the URL be valid for?

  -- Shared content (movie, music) : make it short (a few minutes)

  -- Private content (private to the user) : you can make it last for years

* Signed URL = access to individual files (one signed URL per file)

* Signed Cookies = access to multiple files (one signed cookie for many files)

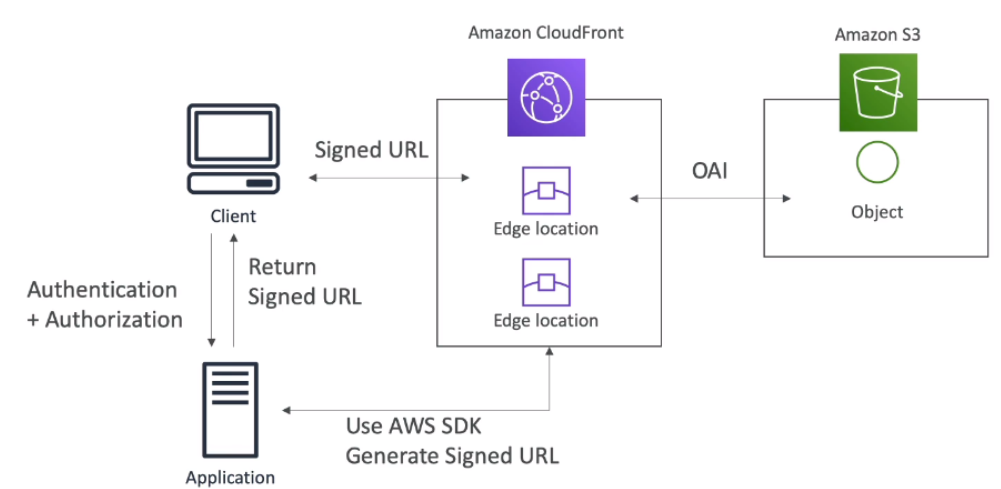

1. Client 는 application 에 인증(authentication)

2. App은 AWS SDK 를 사용하여 Signed URL 을 생성, Client 에 리턴

3. Client 는 Signed URL 을 통해 CloudFront -> S3 Object 에 접근

[ CloudFront Signed URL vs S3 Pre-Signed URL ]

CloudFront Signed URL 은 S3 에 CloudFront Edge 를 통해 접근

S3 Pre-Signed URL 은 S3 에 직접 접근 (IAM 사용)

1. CloudFront Signed URL

- Allow access to a path, no matter the origin

- Account wide key-pair, only the root can manage it

- Can filter by IP, path, date, expiration

- Can leverage caching features

2. S3 Pre-Signed URL

- Issue a request as the person who pre-signed the URL

- Uses the IAM key of the signing IAM principal

- Limited lifetime

[ AWS Global Accelerator ]

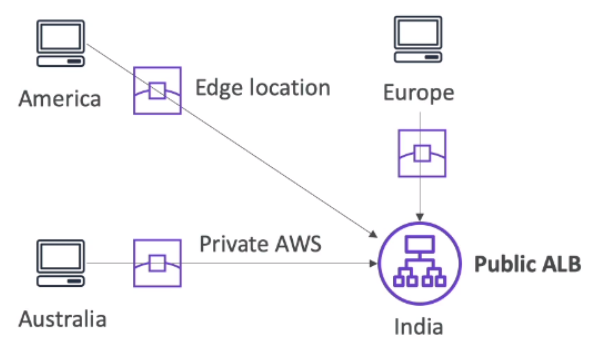

[ Global users for our application ]

Global 서비스에 public internet을 사용하여 접속하는 client 들은 수많은 hop 을 거치며 app에 도달하므로 지연 발생

- You have deployed an application and have global users who want to access it directly

- They go over the public internet, which can add a lot of latency due to many hops

- We wish to go as fast as possible through AWS network to minimize latency

# Unicast IP vs AnyCast IP

Anycast IP는 모든 서버가 동일한 IP주소를 사용하며 클라이언트는 가장 가까운 곳에 routing 되는 방식

Unicast IP : one server holds one IP address

Anycast IP : all servers hold the same IP address and the client is routed to the nearest one

[ AWS Global Accelerator ]

client는 public internet 대신 edge location을 통하여 AWS internal network 로 app에 접근

- Leverage the AWS internal network to route to your application

- 2 Anycast IP are created for your application

- The Anycast IP send traffic directly to Edge Locations

- The Edge locations send the traffic to your application

- Works with Elastic IP, EC2 instances, ALB, NLB, public or private

- Consistent Performance

  1) Intelligent routing to lowest latency and fast regional failover

  2) No issue with client cache (because the IP doesn't change)

  3) Internal AWS network

- Health Checks

  1) Global accelerator performsa health check of your applications

  2) Helps make your application global (failover less then 1 minute for unhealthy)

  3) Grate for DR

- Security

  1) only 2 external IP need to be whitelisted

  2) DDoS protection thanks to AWS Shield

[ AWS Global Accelerator vs CloudFront ]

Both :

1) use the AWS global network and its edge locations around the world

2) integrate with AWS Shield for DDoS protection

Differences :

CloudFront

- Improves performance for both cacheable content (ex: images and videos)

- Dynamic content (ex: API acceleration and dynamic site delivery)

- Content is served at the edge

Global Accelerator

- Improves performance for a wide range fo applications over TCP or UDP

- Proxying packets at the edge to applications running in one or more AWS Regions

- Good fit for non-HTTP use cases, such as gaming(UDP), IoT(MQTT), or Voice over IP

- Good for HTTP use cases that require static IP addresses

- Good for HTTP use cases that required deterministic, fast regional failover

# Hands-On : Global Accelerator

1. Endpoint 로 지정할 Instance 복수개 생성

2. Global accelerator 생성

1) endpoint groups 지정 - region 지정

2) region 별 instance 지정(1에서 생성한 instance 지정)
