- We have an application running on EC2, that distributes software updates once in a while

- When a new software update is out, we get a lot of request and the content is distributed in mass over the network. It's very costly

- We don't want to change our application, but want to optimize our cost and CPU, how can we do it?

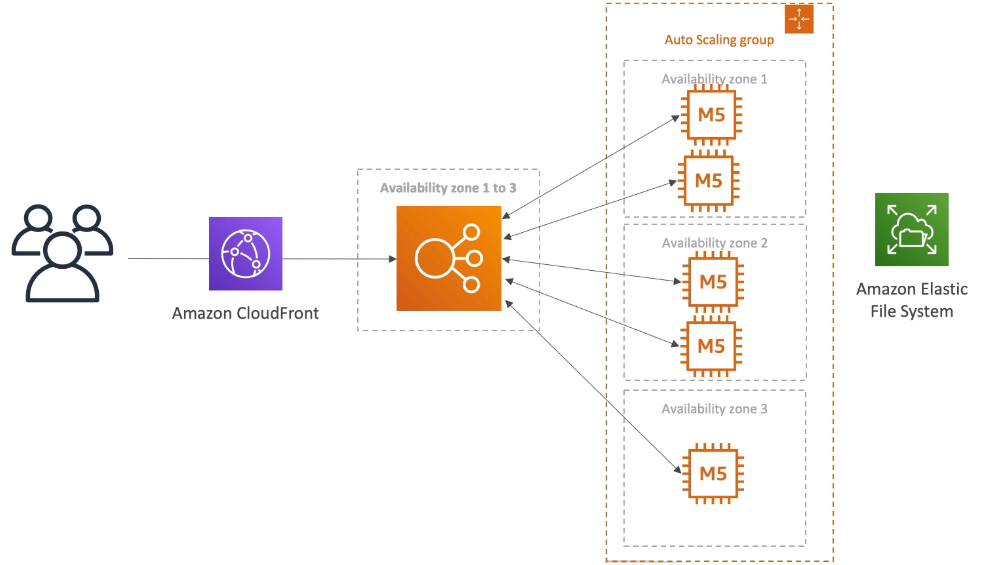

[ Our application current state ]

ELB + ASG , running on multi AZ



[ Easy way to fix things : Using Amazon CloudFront ]

Why CloudFront?

- No changes to architecture

- Will cache software update files at the edge

- Software update files are not dynamic, they're static (never changing)

- Our EC2 instances aren't serverless

- But CloudFront is, and will scale for us

- Our ASG will not scale as much, and we'll save tremendously in EC2

- We'll also save in availability, network bandwidth cost, etc

- Easy way to make an existing applicaition more scalable and cheaper

반응형

[ AWS CloudFront ]

한국 유저가 호주 S3 bucket 의 컨텐츠 요청시 한국에서 가까운 edge(eg. 도쿄) 에서 cached 된 데이터를 가져옴

- Content Delivery Network (CDN)

- Improves read performance, content is cached at the edge

- 216 Point of Presence globally (edge locations)

- DDos protection, integration with Shield, AWS Web application firewall

- can expose external HTTPS and can talk to internal HTTPS backends



[ CloudFront - Origins ]

S3 bucket / Custom origin 에 CloudFront 만 접속/접근을 허용하게 설정(OAI)하여 보안성 향상

1. S3 bucket

- For distributing files and caching them at the edge

- Enhanced security with CloudFront Origin Access Identity (OAI)

- CloudFront can be used as an ingress (to upload files to S3)

2. Custom Origin (HTTP)

- Application Load Balancer

- EC2 instance

- S3 website (must first enable the bucket as a static S3 website)

- Any HTTP backend you want

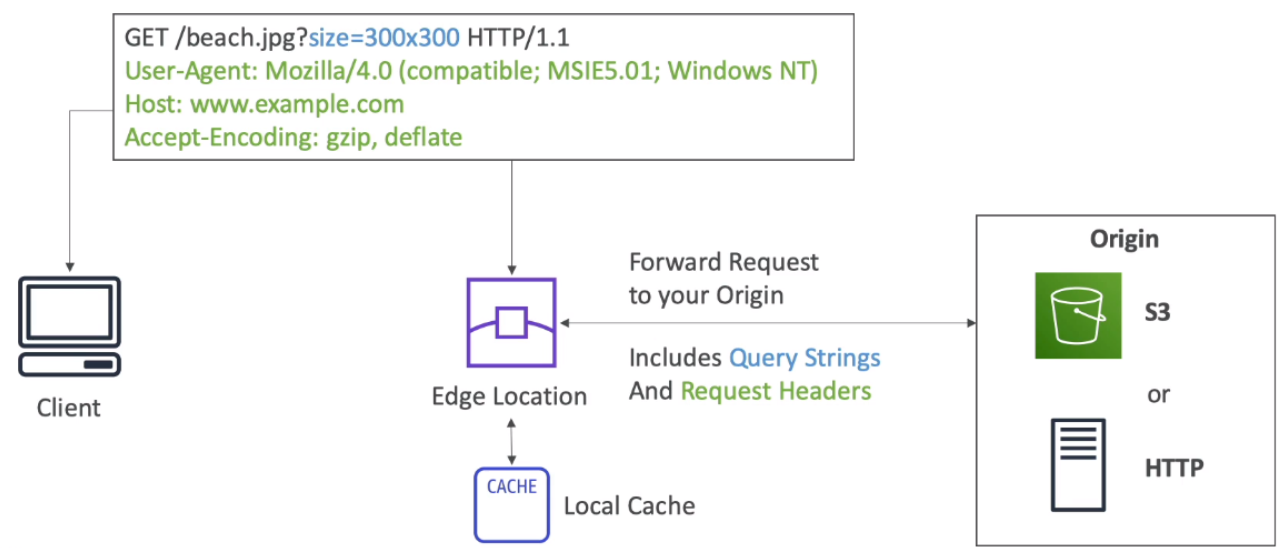

# CloudFront at a high level

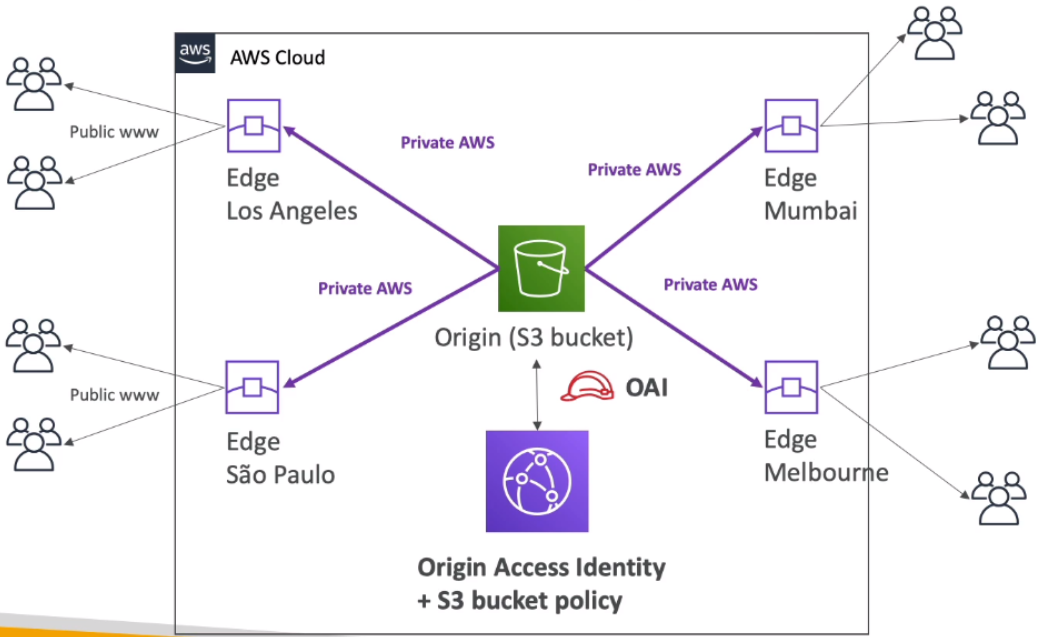

# CloudFront - S3 as an Origin

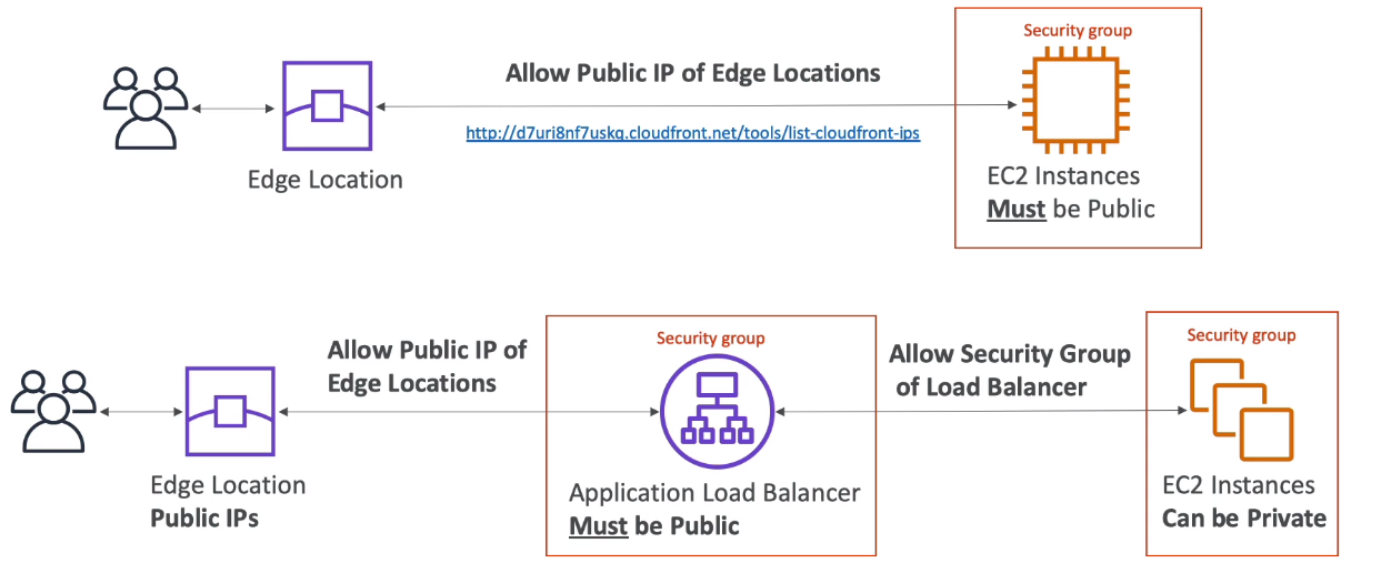

# CloudFront - ALB or EC2 as an origin



[ CloudFront Geo Restriction ]

- You can restrict who can access your distribution

- can use Whitelist/Blacklist

- The country is determined using a 3rd party Geo-IP database

  ex. Copyright Laws to control access to content



[ CloudFront vs S3 Cross Region Replication ]

1) CloudFront :

- Global Edge network

- Files are cached for a TTL (maybe a day)

- Great for static content that must be available everywhere

2) S3 Cross Region Replication :

- Must be setup for each region you want replication to happen

- Files are updated in near real-time

- Read only

- Great for dynamic content that needs to be available at low-latency in few regions
