[AWS] 19-6. AWS Config, Config Rules/Remediations/Notifications

[ AWS Config ]

AWS 리소스의 변화에 대한 로깅으로 Security group 에 제한된 SSH 접근이 있는지, S3 버킷이 퍼블릭 억세스 인지, ALB(Application Load Balancer) 설정이 어떻게 변했는지 등에 대한 로깅.

region 별 서비스, 변경시 SNS 알림 가능, region/계정에 대한 집계 가능, S3 에 저장하여 Athena를 통한 분석 가능

- Helps with auditing and recording compliance of your AWS resources

- Helps record configurations and changes over time

- Questions that can be solved by AWS Config:

  Is there unrestricted SSH access to my security groups?

  Do my buckets have any public access?

  How has my ALB configuration changed over time?

- You can receive alerts (SNS notifications) for any changes

- AWS Config is a per-region service

- Can be aggregated across regions and accounts

- Possibility of storing the configuration data into S3 (analyzed by Athena)



[ Config Rules ]

사전 정의된 룰 사용가능

각 EBS 디스크가 gp2 타입인지 확인, EC2 instance 가 t2.micro 타입인지 확인하는 등의 사용자 지정 룰 사용 가능(AWS Lambda 사용)

설정 변경시 트리거에의해 동작 혹은 스케쥴링에 의해 확인 가능.

Confg Rules 는 설정변경을 막진 않는다.

무료 아님.

- Can use AWS managed config rules (over 75 rules)

- Can make custom config rules (must be defined in AWS Lambda)

  ex1: evaluate if each EBS disk is of type gp2

  ex2: evaluate if each EC2 instance is t2.micro

- Rules can be evaluated/triggered For each config changes (+ at regular time intervals)

- AWS Config Rules does not prevent actions from happening (no deny)

- Pricing : no free tier, pay per configuration item recorded per region, pay per config rule evaluation per region





[ Config Rules - Remediations ]

SSM 자동화 문서를 사용하여 부적합 리소스에 대한 수정을 자동화

Lambda 함수 호출하는 사용자 지정 문서 생성 가능

자동 수정 후에도 리소스가 부적합한 경우 retry 가능

- Automate remediation of non-compliant resources using SSM Automation Documents

- Use AWS-Managed Automation Documents or create custom Automation Documents

  Tip: you can create custom Automation Documents that invokes Lambda function

- You can set Remediation Retries if the resource is still non-compliant after auto-remediation



[ Config Rules - Notifications ]

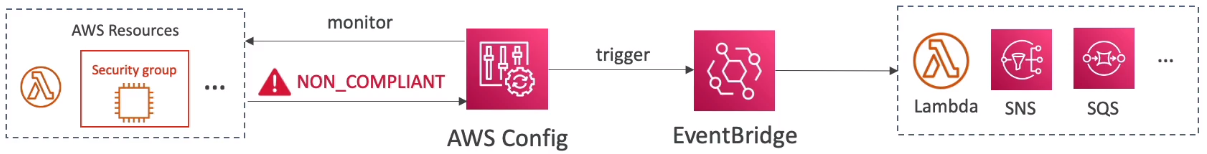

- Use EventBridge to trigger notifications when AWS resources are non-compliant

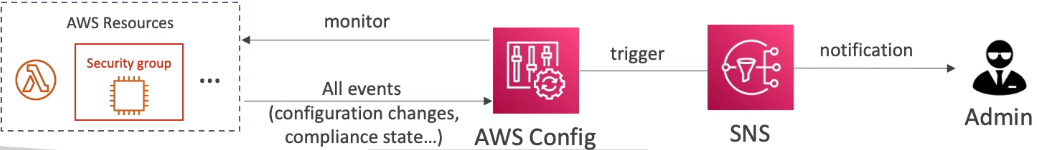

- Ability to send configuration changes and compliance state notifications to SNS (all events - use SNS Filtering or filter at client-side)





[ CloudWatch vs CloudTrail vs Config ]

CloudWatch

- Performance monitoring (metrics, CPU, network, etc..) & dashboards

- Events & Alerting

- Log Aggregation & analysis

CloudTrail

- Record API calls made within your Account by everyone

- Can define trails for specific resources

- Global Service

Config

- Record configuration changes

- Evaluate resources against compliance rules

- Get timeline of changes and compliance



[ For an Elastic Load Balancer ]

CloudWatch :

메트릭에 기반한 성능 모니터링

- Monitoring Incoming connections metric

- Visualize error codes as a % over time

- Make a dashboard to get an idea of your load balancer performance

Config :

설정 정합성 확인

- Track security group rules for the Load Balancer

- Track configuration changes for the Load Balancer

- Ensure an SSL certificate is always assigned to the Load Balancer(compliance)

CloudTrail :

어떤 사용자가 설정을 변경했는지 확인

- Track who made any changes to the Load Balancer with API calls
